eLite Electric Outboard Motor
Tax excluded. Shipping calculated at checkout
This item qualifies for free shipping Canada wide!
Description

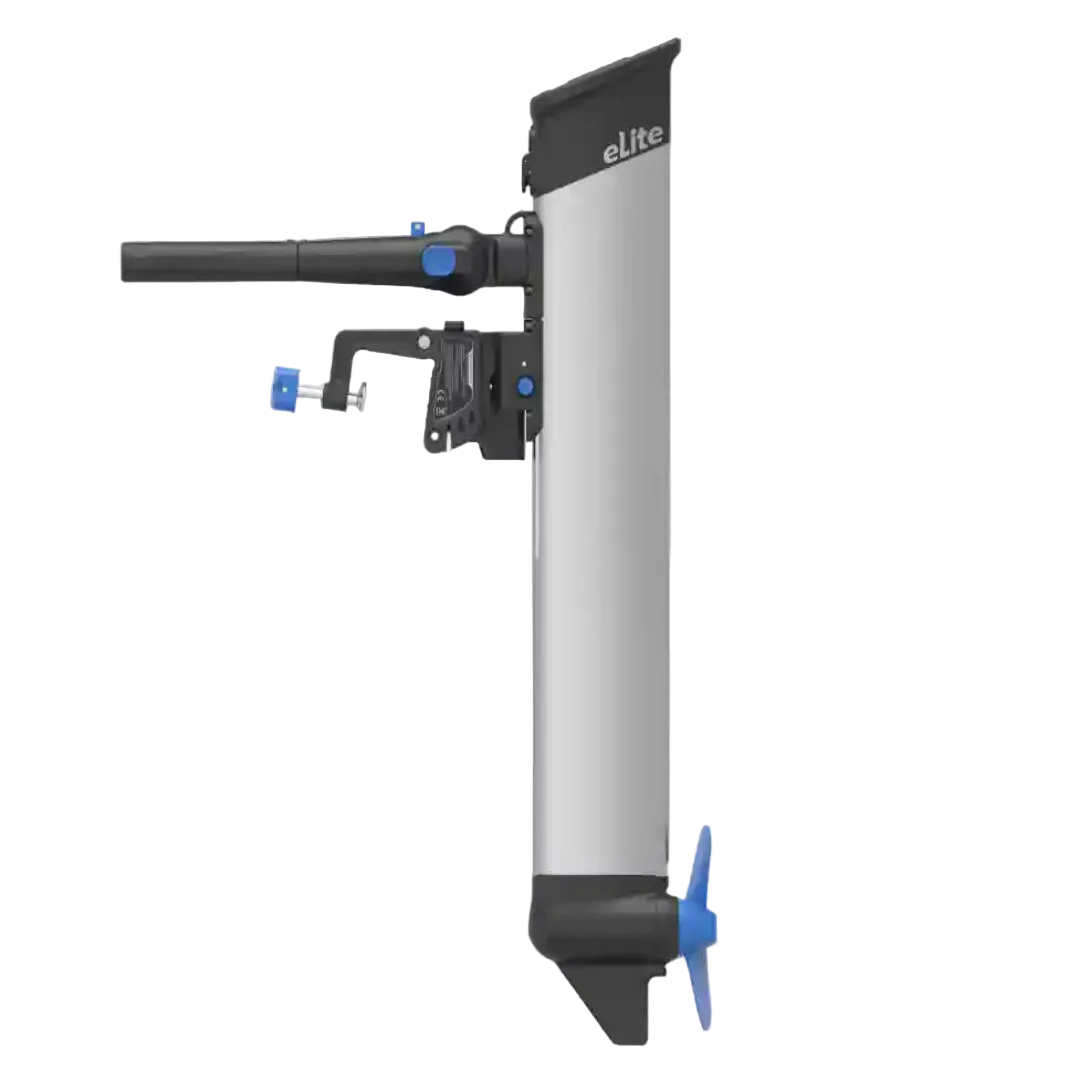

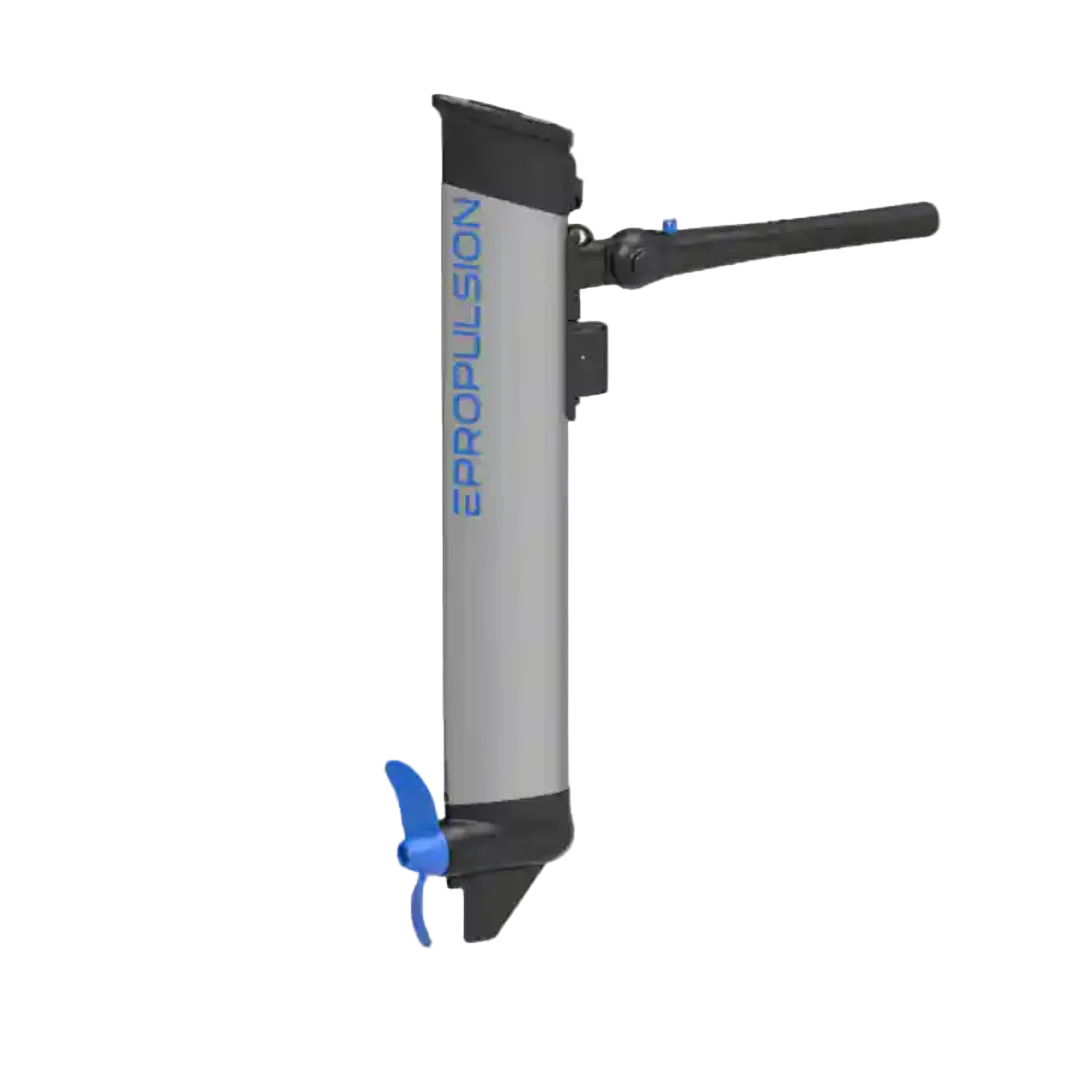

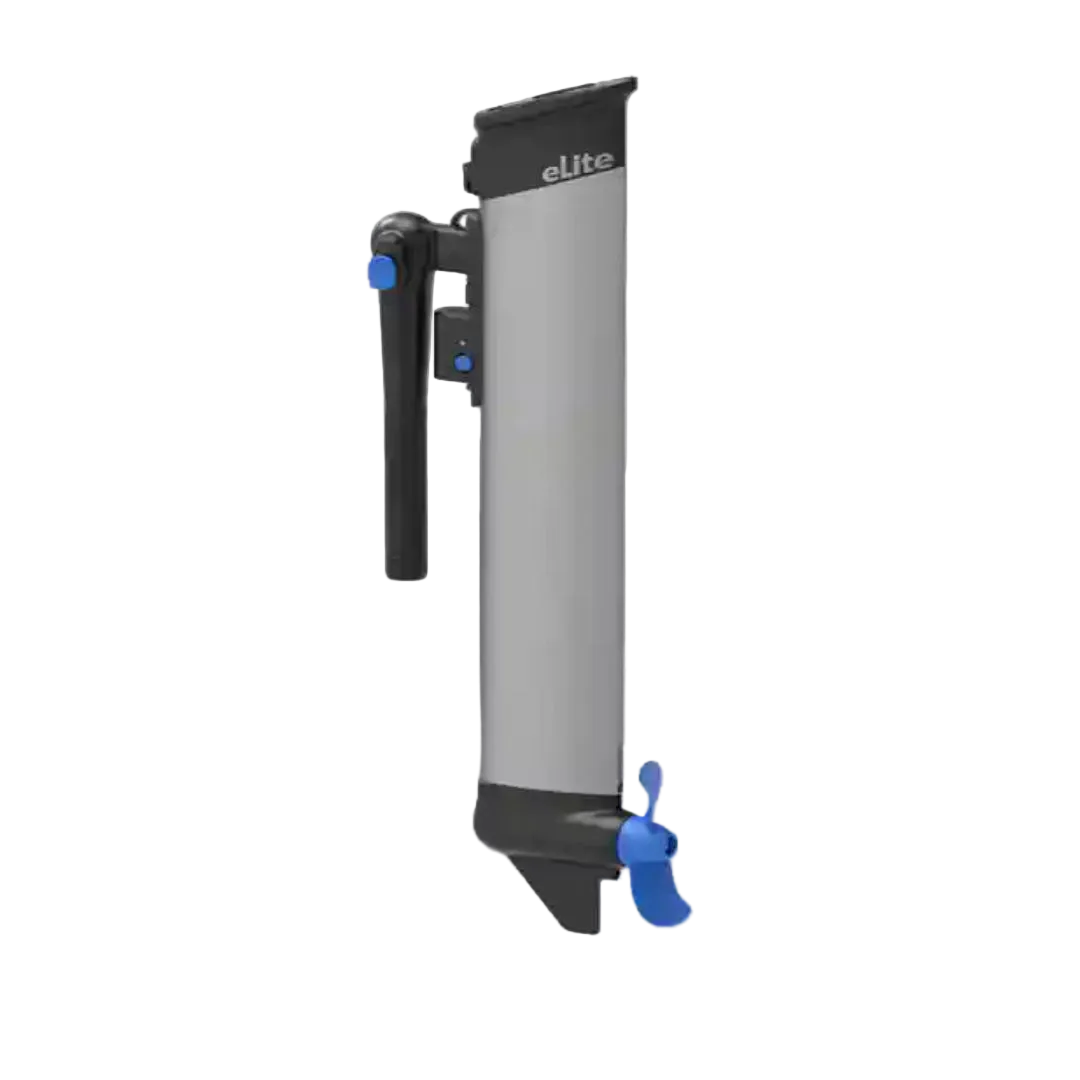

eLite Electric Outboard Motor
The ePropulsion eLite is a 500W electric outboard motor, offering a lightweight and efficient alternative to small petrol engines. Weighing just 6.7 kg (excluding bracket), it is the smallest and most compact motor in the ePropulsion range, making it ideal for small boats, kayaks, and dinghies.
Key Features:
-
Integrated 378 Wh Lithium Battery: Provides a range of up to 9 km, depending on operating conditions.
-

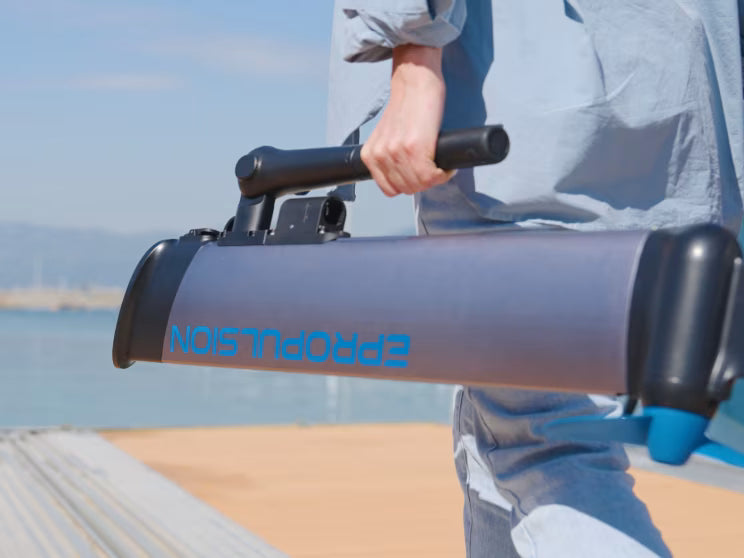

Compact Design: With dimensions of 297 x 75 x 890 mm, it is easy to transport and store.
-
Quiet Operation: Ensures a peaceful boating experience without the noise associated with traditional engines.
-

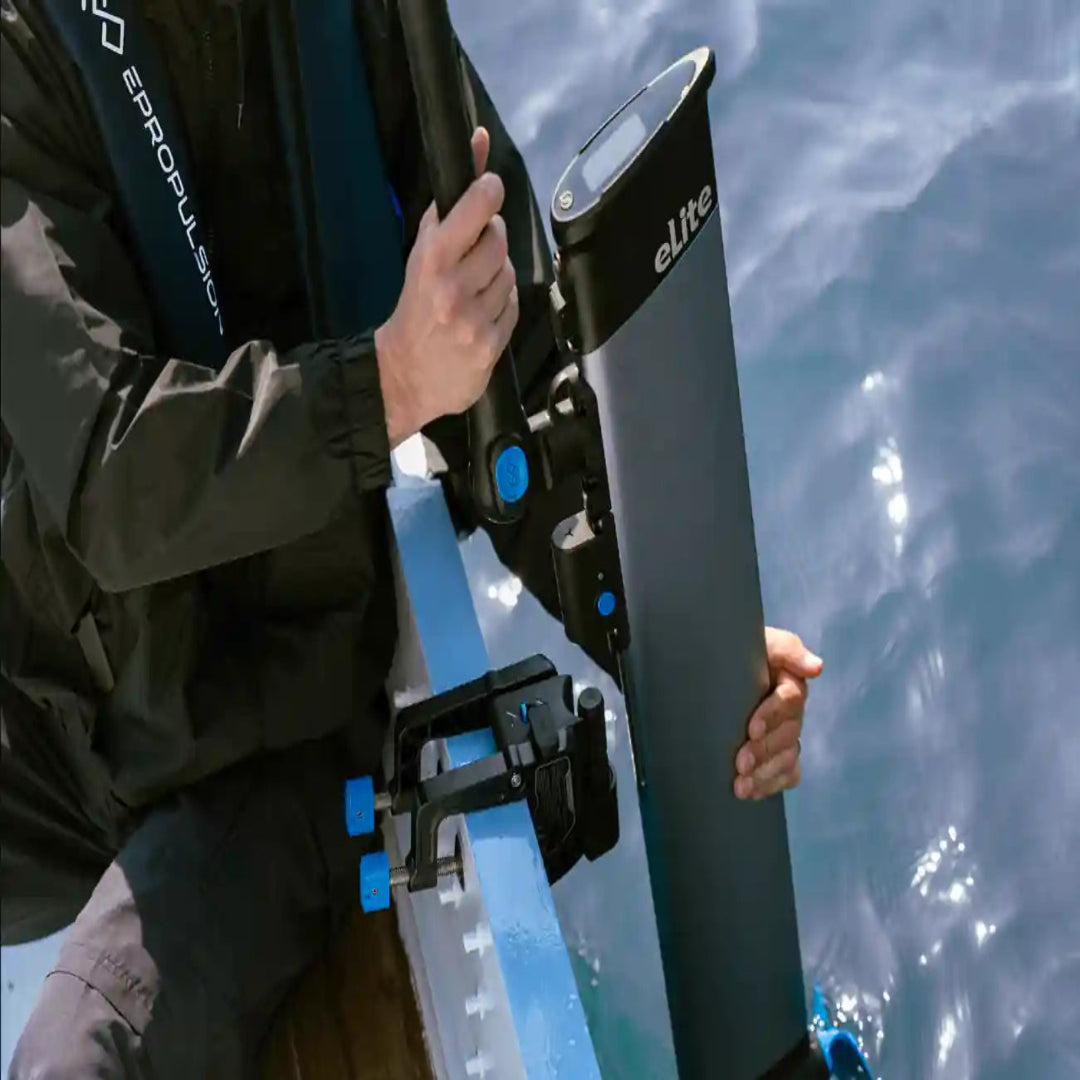

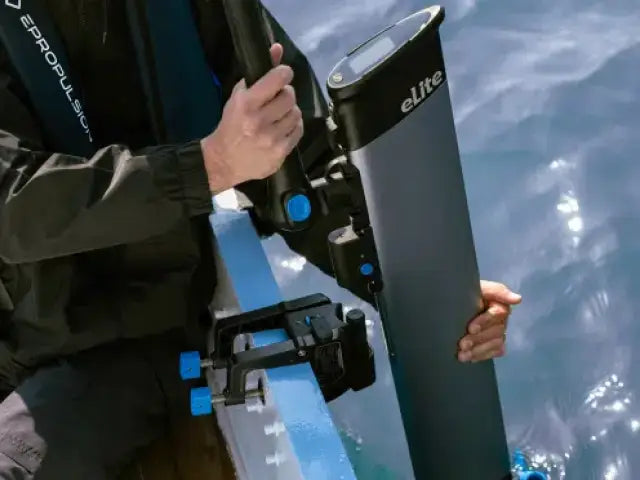

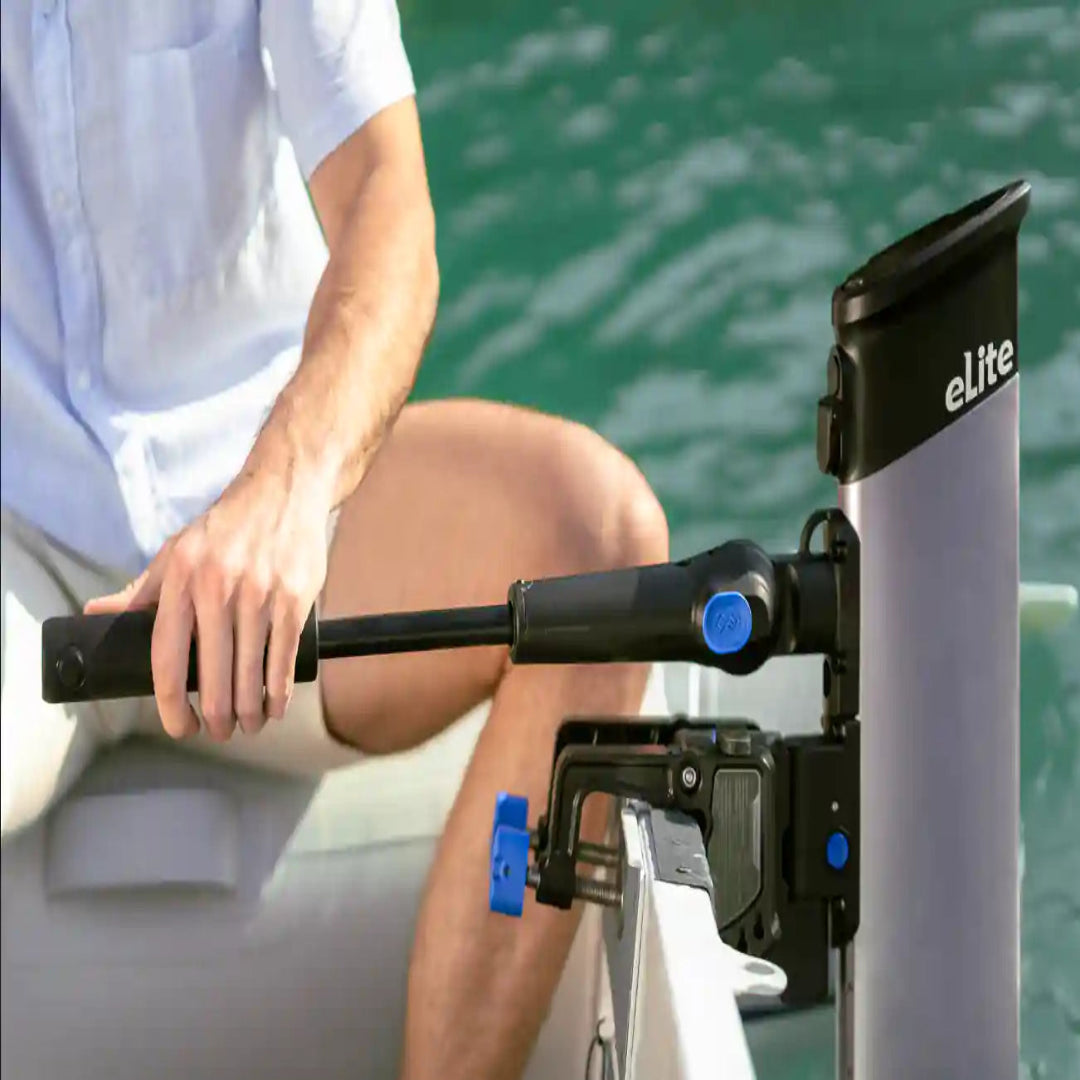

Easy Setup: Features a one-click installation and removal system for user convenience.
-
Smart Display: Integrated display provides real-time monitoring of power usage and battery status.
Performance:
-
Half Power (250W): Achieves speeds up to 3.7 mph (6.0 kph) with a runtime of approximately 1 hour and 30 minutes, covering a distance of about 5.6 miles (9.0 km).
-
Full Power (500W): Reaches speeds up to 4.7 mph (7.5 kph) with a runtime of around 45 minutes, covering approximately 3.5 miles (5.6 km).
-
Sport Mode (750W): Offers a burst of speed up to 5.2 mph (8.3 kph) for short durations, subject to battery state and temperature.
The eLite's streamlined design and user-friendly features make it a versatile choice for boating enthusiasts seeking an eco-friendly propulsion solution. Its portability and performance are well-suited for a variety of small watercraft applications.
Performance
- Half Power (250W): Achieves speeds up to 3.7 mph (6.0 kph) with a runtime of approximately 1 hour and 30 minutes, covering a distance of about 5.6 miles (9.0 km).
- Full Power (500W): Reaches speeds up to 4.7 mph (7.5 kph) with a runtime of around 45 minutes, covering approximately 3.5 miles (5.6 km).
- Sport Mode (750W): Offers a burst of speed up to 5.2 mph (8.3 kph) for short durations, subject to battery state and temperature.
The eLite's streamlined design and user-friendly features make it a versatile choice for boating enthusiasts seeking an eco-friendly propulsion solution. Its portability and performance are well-suited for a variety of small watercraft applications.
Compatible Products
- eLite Charger
- eLite 12V Charger
- eLite Solar Charger
- eLite Outboard Bag
- eLite Clamp Bracket Assembly
- eLite Trim Pin
- eLite Clamp Bracket Assembly V2
- eLite Kill Switch
- eLite Propeller
- Outboard Display Stand Plus

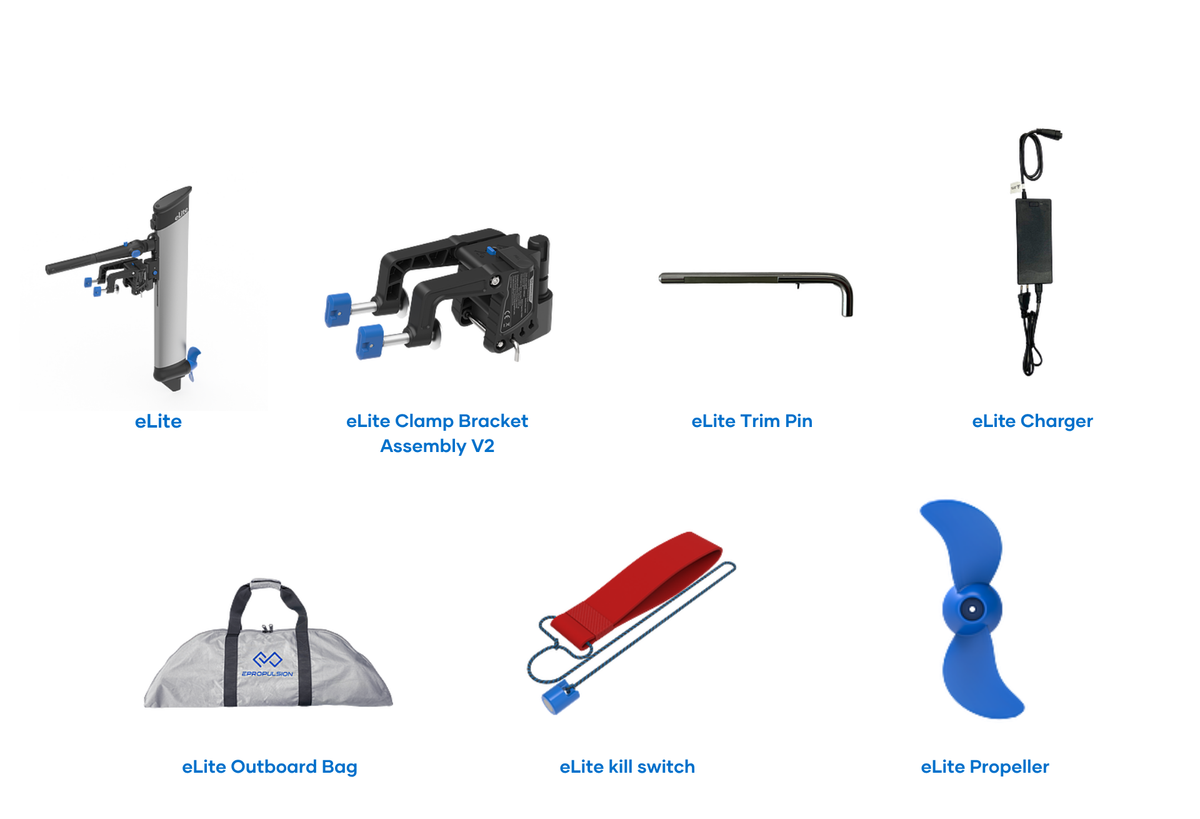

Included Equipment
- 1 x eLite Charger

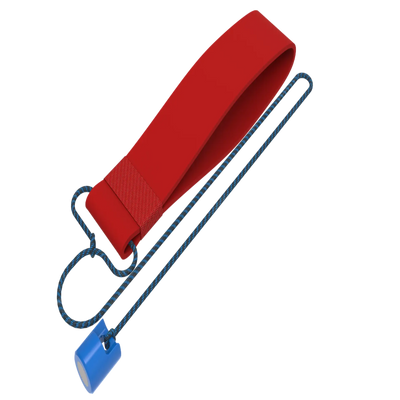

- 1 x eLite Kill Switch

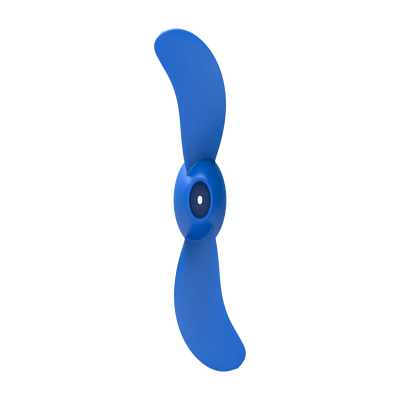

- 1 x eLite Propeller
- 1 x eLite Trim Pin

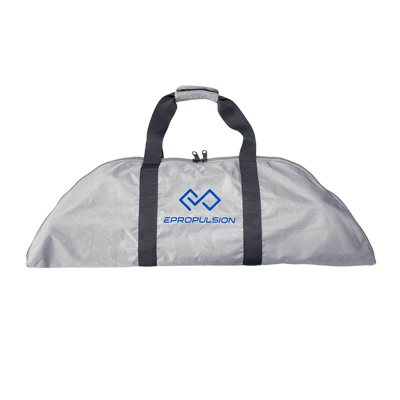

- 1 x eLite Outboard Bag
- 1 x eLite Clamp Bracket Assembly V2

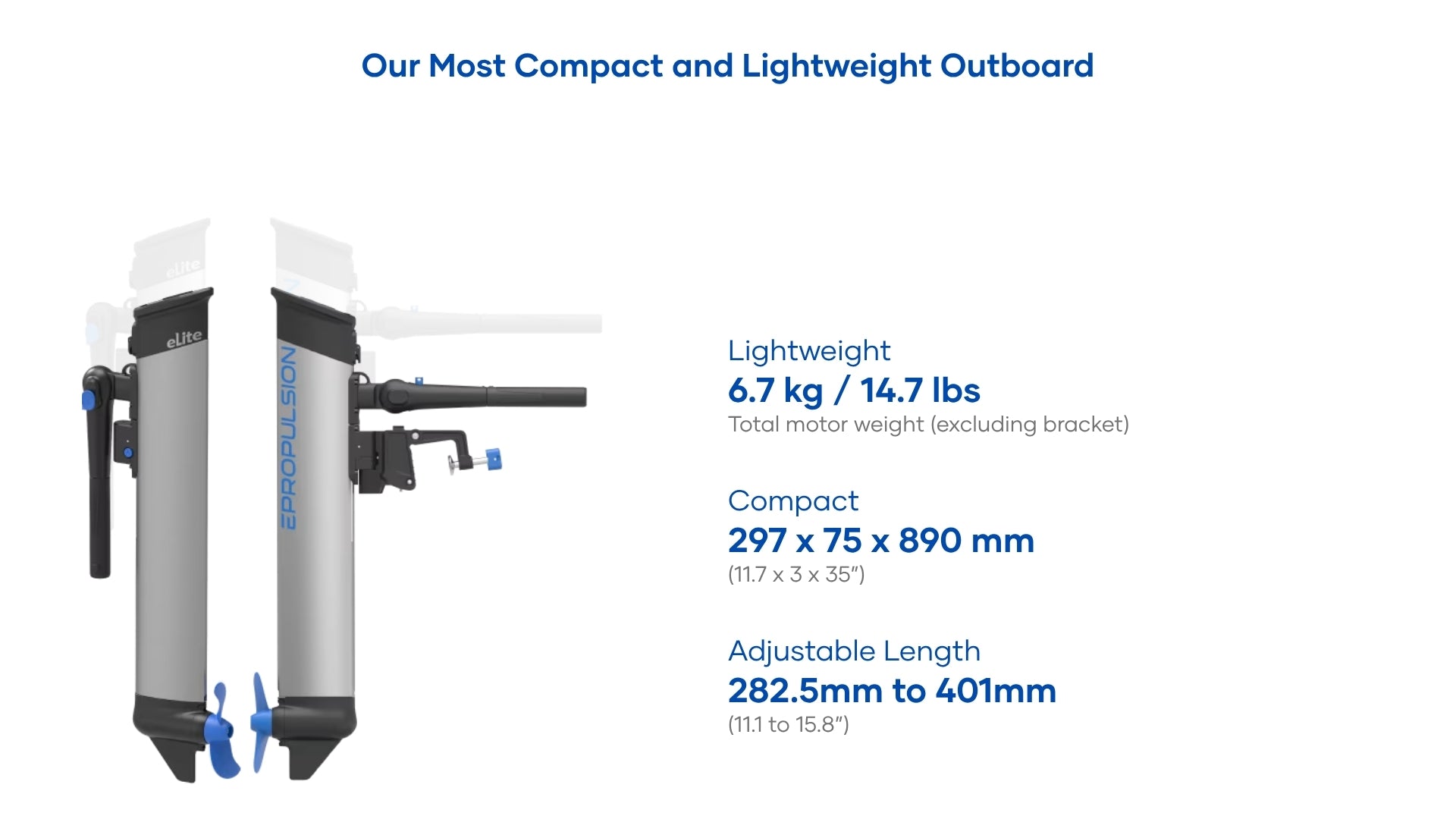

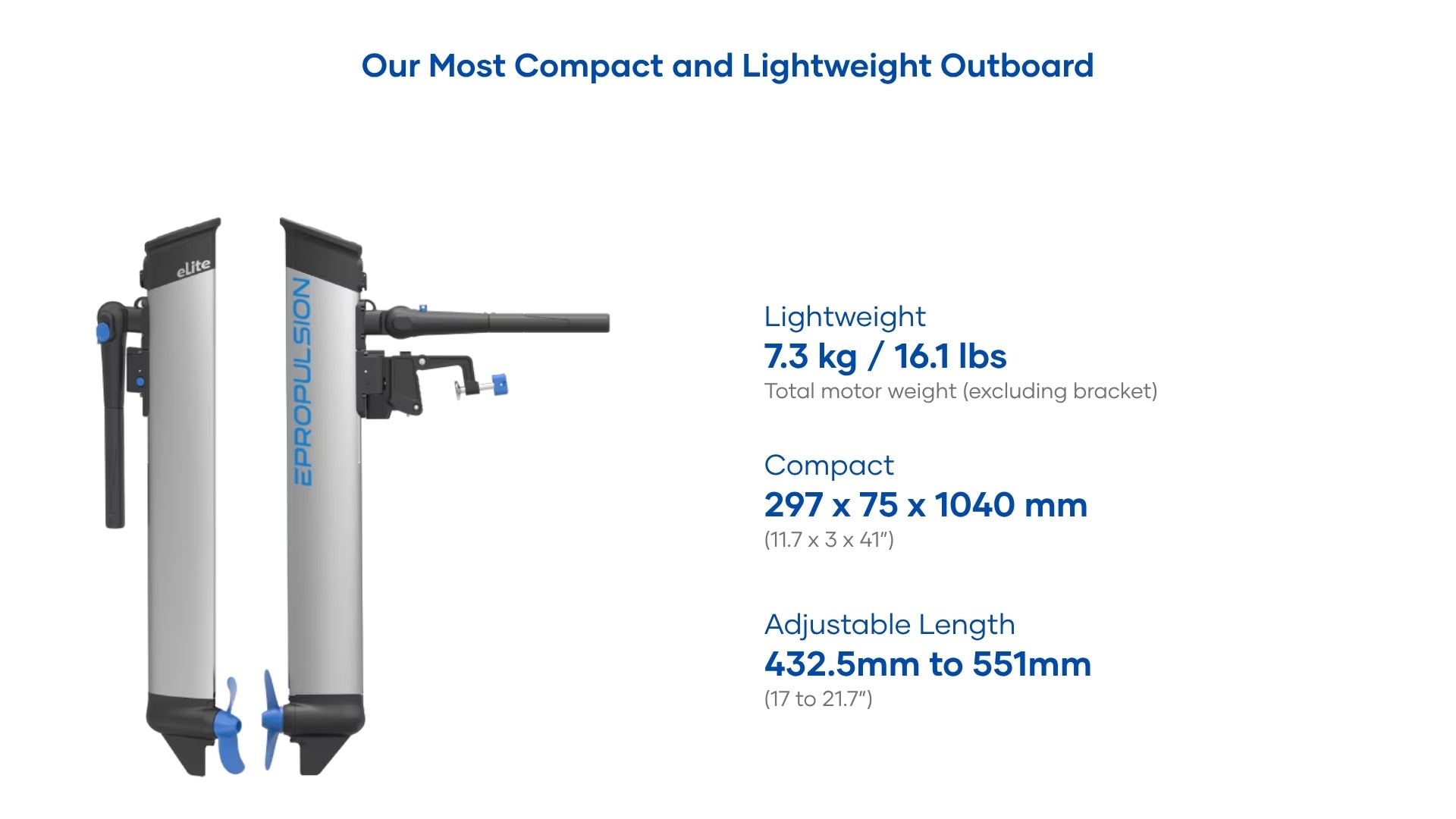

Our Most Compact and Lightweight Outboard
Motor Specifications
The ePropulsion Elite motor combines cutting-edge electric technology with exceptional performance. With 750W turbo power, 95% drive efficiency, and natural cooling design, this electric outboard delivers reliable thrust while minimizing environmental impact.
25.2 V
10 - 500 Watts
750 Watts
125 N (28.1 Lbs)
Natural cooling
95 %
28 - 40 cm
1:1
Performance and Range*
| Power (W) | Speed (mph/kph) | Runtime (hh:mm) | Range (mile/km) |
|---|---|---|---|
| Half Power 250W | 3.7 / 6.0 | 01:30 | 5.6 / 9.0 |
| Full Power 500W | 4.7 / 7.5 | 00:45 | 3.5 / 5.6 |
| Sport Mode 750W | 5.2 / 8.3 | ** | - |

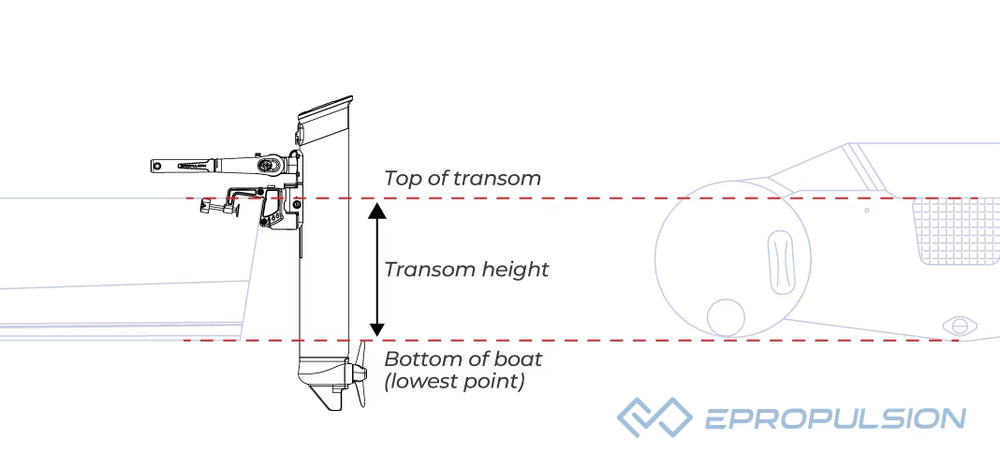

Shaft Length Recommendation
| eLite Version | Transom Height |
|---|---|
| Standard | 28-40cm / 11-15.7 inches |
| Longshaft | 43-55cm / 16.9-21.7 inches |

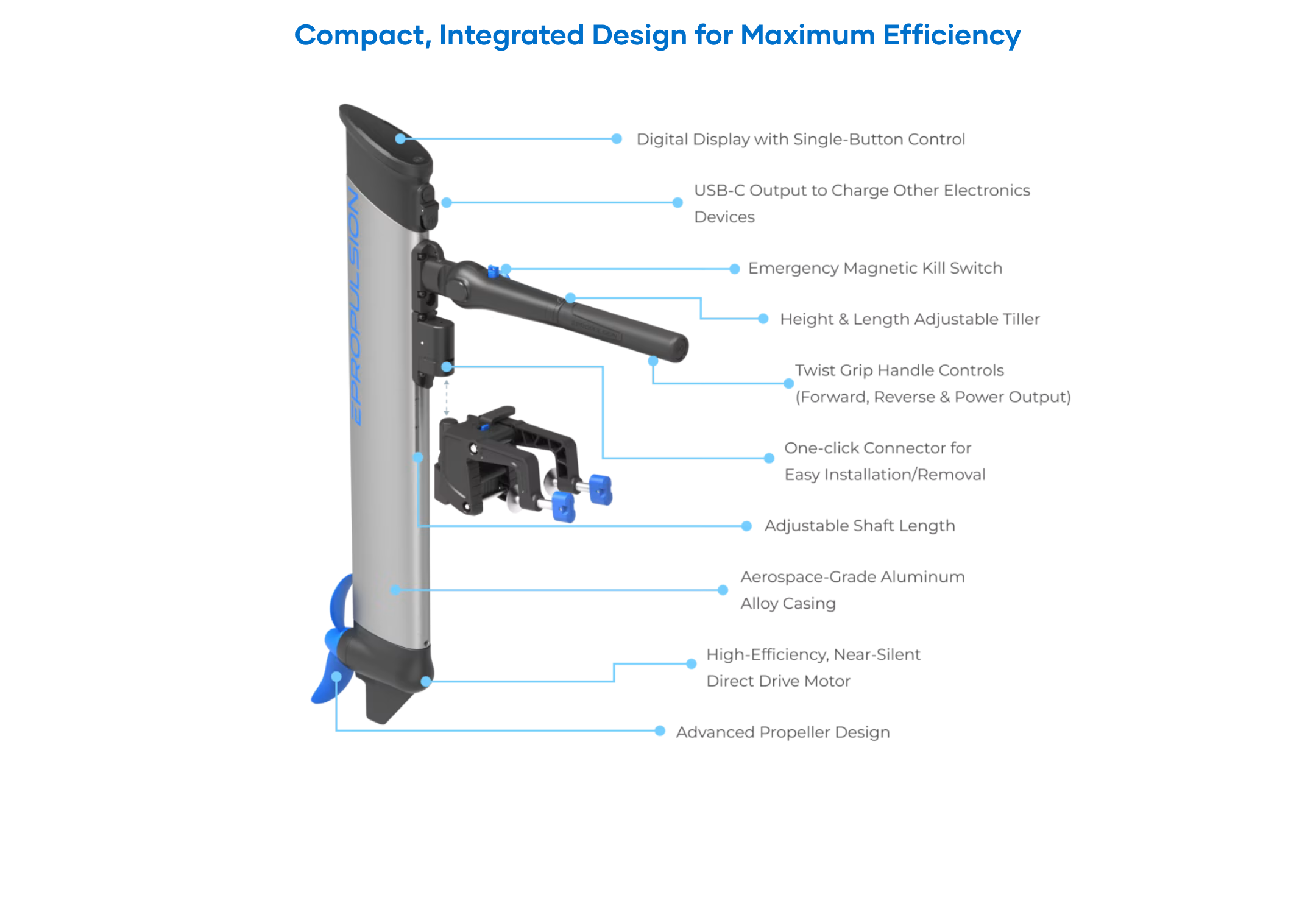

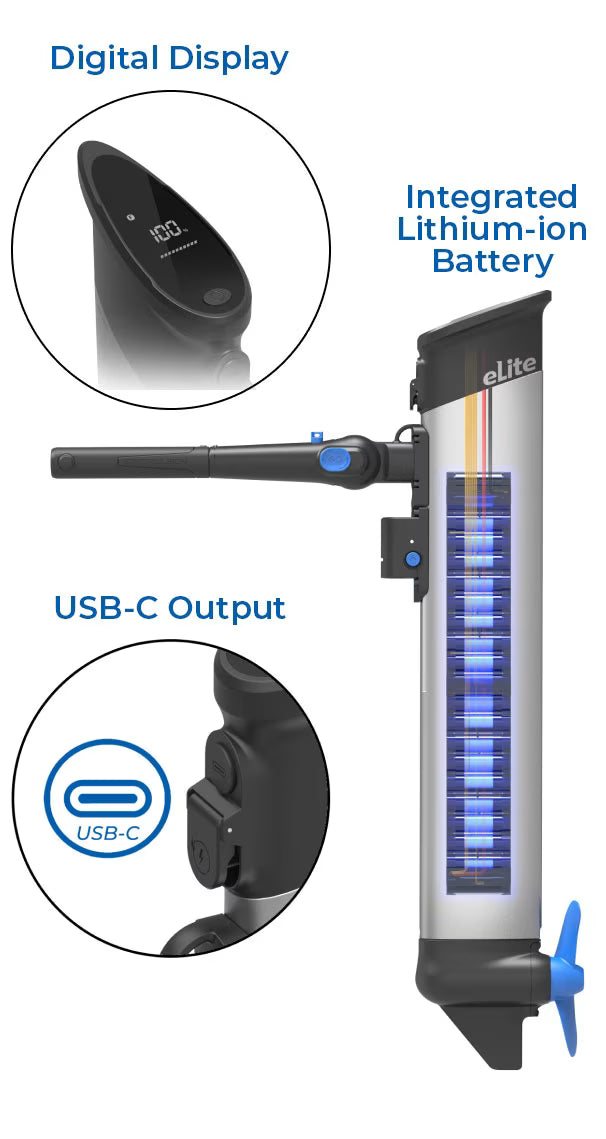

Features

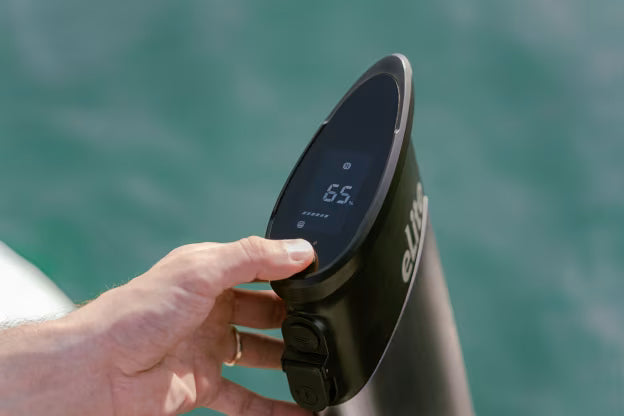

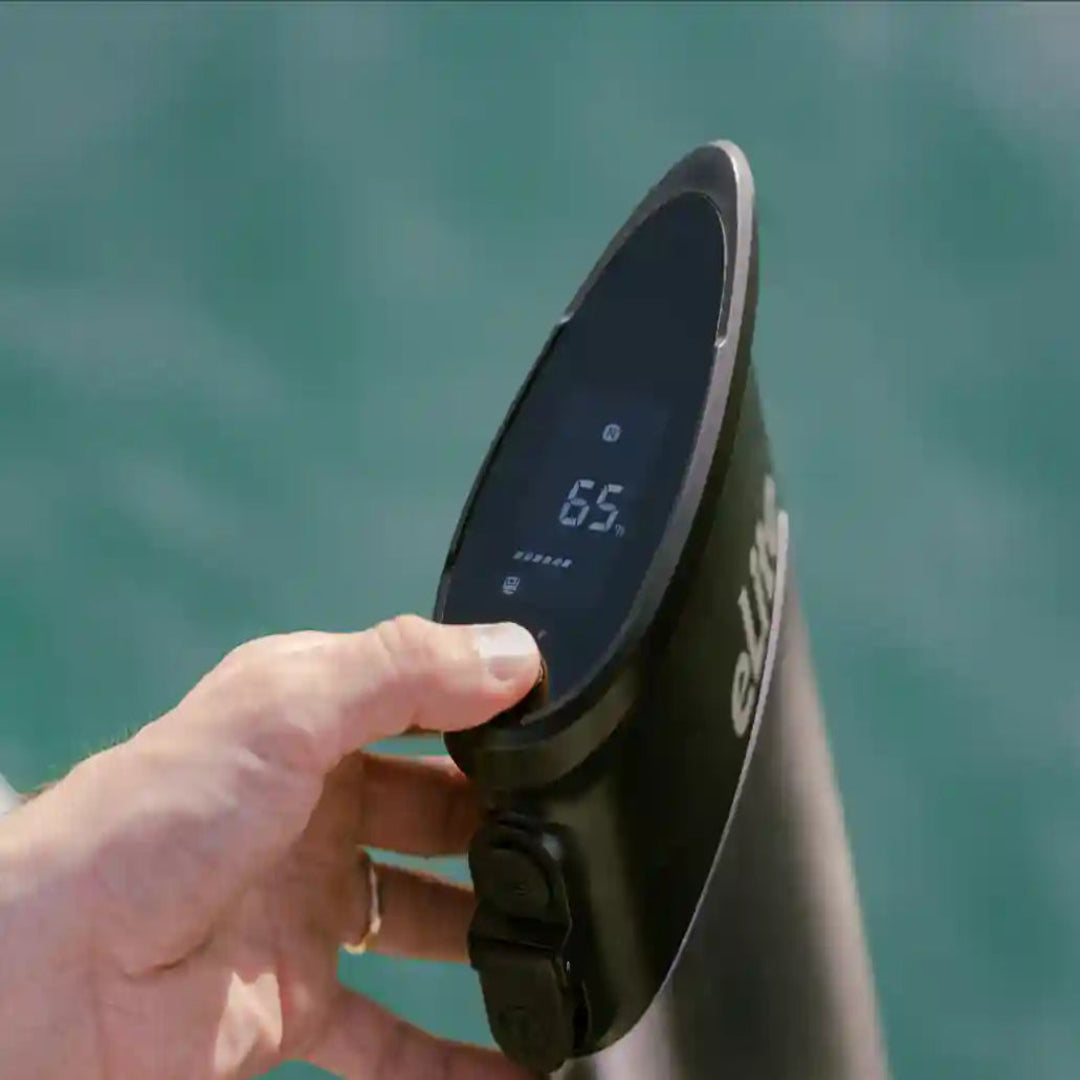

Digital Smart Display
Integrated Lithium-ion Battery
USB-C Output
Specifications
| Specifications | Standard | Longshaft |
|---|---|---|
| Nominal Power | 500 W | |
| Maximum Power (in Sport mode) | 750 W | |
| Battery | Integrated 378 Wh 25.2V Lithium-ion | |
| Charger | 220V AC charger included, 12V charger optional | |
| Cooling System | Natural water cooling | |
| Rated RPM | 1450 to 1800 | |
| Operating Temperature | -5 to 55 °C | |
| Storage Temperature | -20 to 45 °C | |

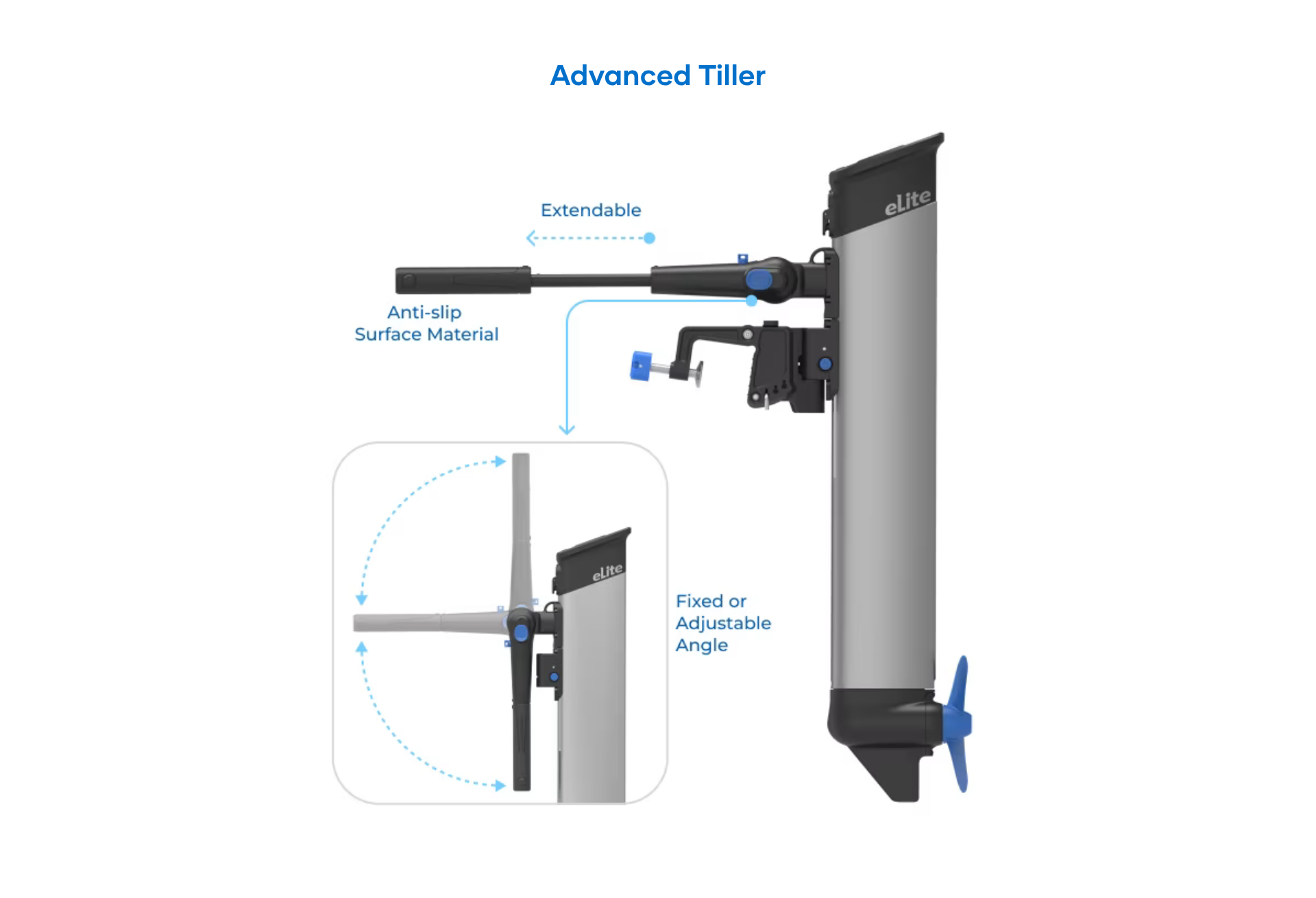

| Trim and Tilt | 8° / 17° / 26° | |

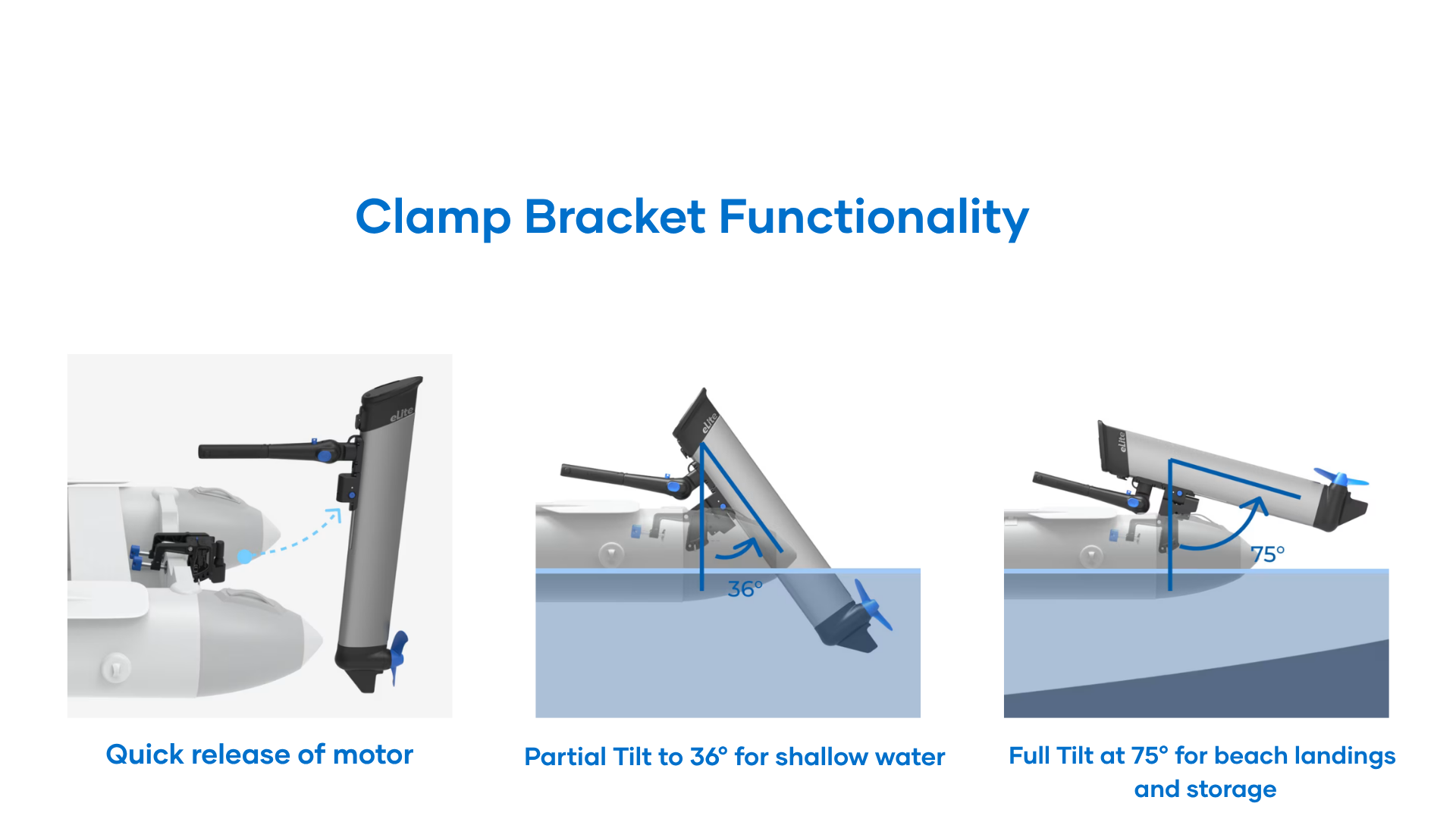

| Tilt Angle | 75° | |
| Shallow Water Mode Tilt Angle | 36° | |
| Steering Angle | ±70° | |
| Dimensions (L x W x H) | 297 x 75 x 890 mm (11.7 x 3 x 35") |
297 x 75 x 1040 mm (11.7 x 3 x 41") |
| Motor Weight (excluding bracket) | 6.7 kg / 14.7 lbs | 7.3 kg / 16.1 lbs |
| Motor Weight (including bracket) | 7.9 kg / 17.4 lbs | 8.5 kg / 18.7 lbs |
| Adjustable Shaft Length | 401 / 362.5 / 322 / 282.5 mm (15.8 / 14.27 / 12.7 / 11.1") |
551 / 512.5 / 472 / 432.5 mm (21.7 / 20.2 / 18.6 / 17") |
